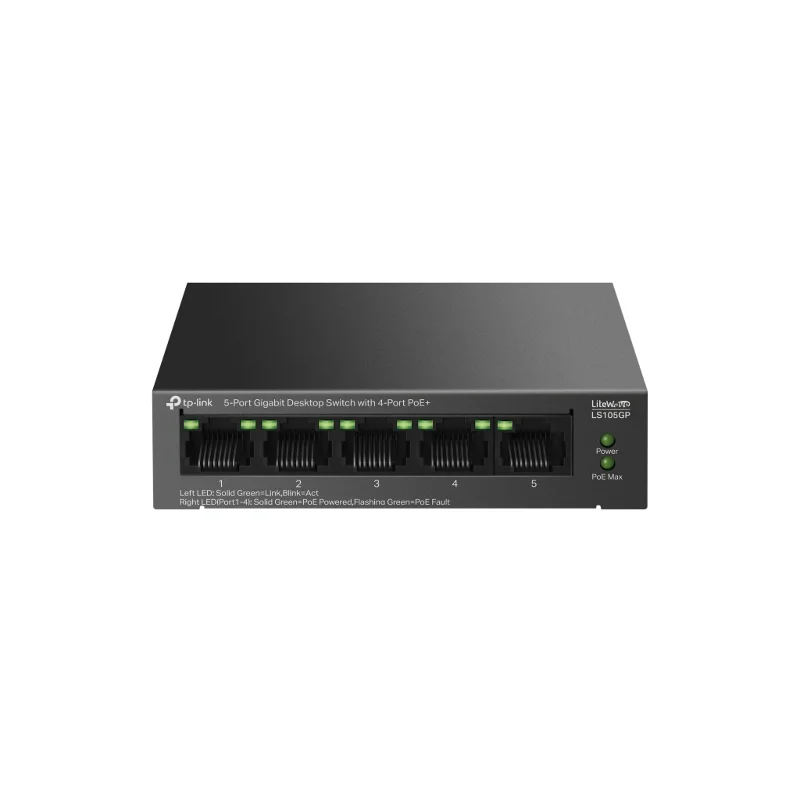

TP-LINK LS105GP, Green Tech, 5 Port, GigaBit, 4 Port PoE 65W, Metal Kasa, Yönetilemez, Masaüstü Switch

• RJ45 Port: 5 Adet
• RJ45 Veri Hızı: 1Gbps
• PoE Port: 4 Adet
• SFP Port: Yok
• Rack Kabin: Uyumlu Değil
• Yönetilebilir: Yönetilemez
• PoE Gücü Watt: 65W
• Uplink Port: Yok
• Materyal: ​Metal

DONANIM ÖZELLİKLERİ

Arabirim • 5× 10/100/1000Mbps RJ45

• Port: s (
• Port: s 1–4 supports 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX
• Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

Fan Sayısı Fanless

Kurulum • Desktop

• Wall Mounting
• Güç Kaynağı External Power Adapter (Output: 53.5 VDC / 1.31 A)
• PoE Portları (RJ45) • Standard: 802.3 af/at compliant
• PoE
• Port: s:
• Port: s 1–4, up to 30 W PoE output per
• Power Supply: 65 W

Boyutlar ( W X D X H ) 3.9×3.9×1.0 in (99.8×98×25 mm)

Maks. Güç Tüketimi • 4 W (220/50 Hz. no PD connected)

• 74.46 W (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation • 13.6 BTU/h (no PD connected)

• 253.16 BTU/h (with 65 W PD connected)

PERFORMANS

Anahtarlama Kapasitesi 10 Gbps

Paket Yönlendirme Hızı 7.44 Mpps

MAC Adres Tablosu 2K

Jumbo Frame 16 KB

YAZILIM ÖZELLİKLERİ

Gelişmiş Özellikler • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)

• PoE Auto Recovery Button (Ports 1-4)
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Green Technology

Transfer Metodu Store-And-Forward

DİĞERLERİ

Sertifika FCC, CE, RoHS

Paket İçeriği • LS105GP

• Power Adapter
• Installation Guide
• Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
