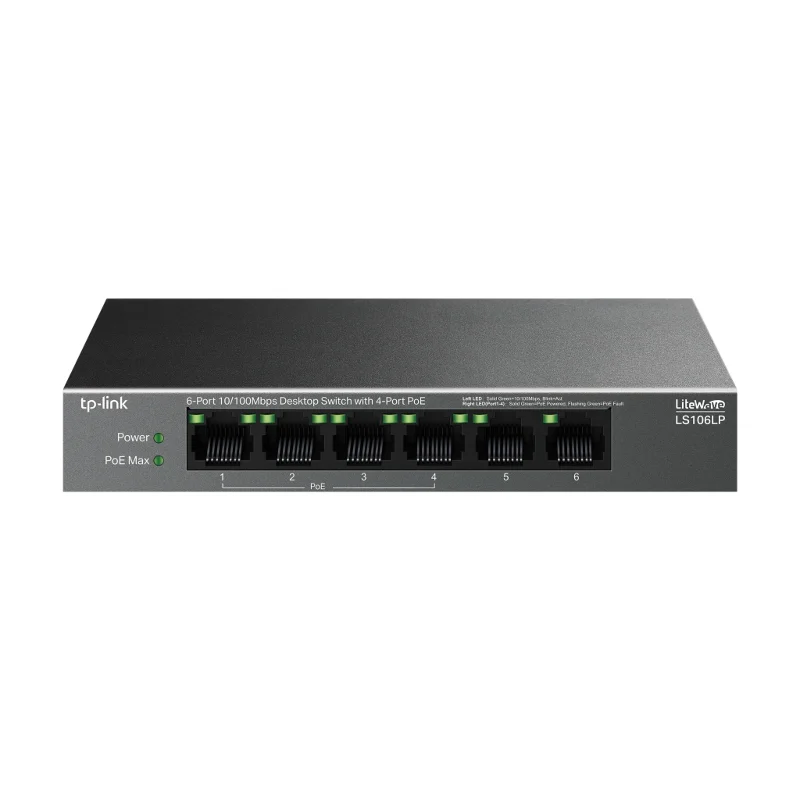

TP-LINK LS106LP, Green Tech, 6 Port, MegaBit, 4 Port PoE 41W, Metal Kasa, Yönetilemez, Masaüstü Switch

• RJ45 Port: 6 Adet
• RJ45 Veri Hızı: 100Mbps
• PoE Port: 4 Adet
• SFP Port: Yok
• Rack Kabin: Uyumlu Değil
• Yönetilebilir: Yönetilemez
• PoE Gücü Watt: ​41W
• Uplink Port: Yok
• Materyal: ​Metal

DONANIM ÖZELLİKLERİ

Arabirim • 6× 10/100 Mbps RJ45

• Port: s (4× 10/100 Mbps 802.3af PoE
• Port: s)
• AUTO Negotiation
• AUTO MDI/MDIX
• Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

Fan Sayısı Fanless

Kurulum • Desktop

• Wall Mounting
• Güç Kaynağı External Power Adapter (Output: 53.5VDC / 0.81A)
• PoE Portları (RJ45) • Standard: 802.3 af compliant
• PoE
• Port: s:
• Port: s 1–4, up to 15.4 W PoE output per
• Power Supply: 41 W

LED Göstergesi • Power

• Link/Act
• PoE Status
• PoE MAX

Boyutlar ( W X D X H ) 6.2×4.0×1.0 in (158×101×25 mm)

Maks. Güç Tüketimi • 2.53 W (220 V/50 Hz no PD connected)

• 47.76 W (220 V/50 Hz with 41 W PD connected)

Max Heat Dissipation • 8.61 BTU/h (220 V/50 Hz no PD connected)

• 162.38 BTU/h (220 V/50 Hz with 41 W PD connected)

PERFORMANS

Anahtarlama Kapasitesi 1.2 Gbps

Paket Yönlendirme Hızı 0.8928 Mpps

MAC Adres Tablosu 2K

Jumbo Frame 2 KB

YAZILIM ÖZELLİKLERİ

Gelişmiş Özellikler • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)

• PoE Auto Recovery Button (Ports 1-4)
• Compatible With IEEE 802.3af Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• Green Technology

Transfer Metodu Store and Forward

DİĞERLERİ

Sertifika CE, FCC, RoHS

Paket İçeriği • LS106LP

• Power Adapter
• Installation Guide
• Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
