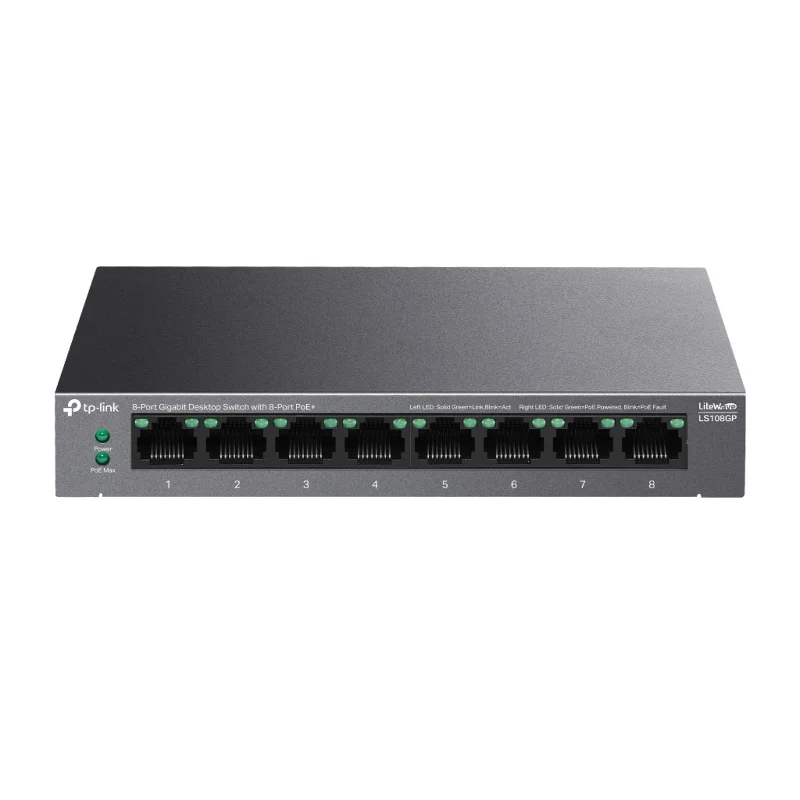

TP-LINK LS108GP, Green Tech, 8 Port GigaBit, PoE 62W, Yönetilemez, Metal Kasalı Switch

• RJ45 Port: 8 Adet
• RJ45 Veri Hızı: 1Gbps
• PoE Port: 8 Adet
• SFP Port: Yok
• Rack Kabin: Uyumlu Değil
• Yönetilebilir: Yönetilemez
• PoE Gücü Watt: 62W
• Uplink Port: Yok
• Materyal: ​Metal

DONANIM ÖZELLİKLERİ

Arabirim • 8× 10/100/1000Mbps RJ45

• Port: s (
• Port: s 1–8 supports 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX
• Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

Fan Sayısı Fanless

Kurulum • Desktop

• Wall Mounting
• Güç Kaynağı External Power Adapter (Output: 53.5 VDC / 1.31 A)
• PoE Portları (RJ45) • Standard: 802.3 af/at compliant
• PoE
• Port: s:
• Port: s 1–8, up to 30 W PoE output per
• PoE Budget: 62 W

Boyutlar ( W X D X H ) 6.2×3.9×1.0 in (158×99×25 mm)

Maks. Güç Tüketimi • 5.53 W (220 V/50 Hz. no PD connected)

• 71.61 W (220 V/50 Hz. with 62 W PD connected)

Max Heat Dissipation • 18.81 BTU/h (220 V/50 Hz. no PD connected)

• 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)

PERFORMANS

Anahtarlama Kapasitesi 16 Gbps

Paket Yönlendirme Hızı 11.9 Mpps

MAC Adres Tablosu 4K

Jumbo Frame 16 KB

YAZILIM ÖZELLİKLERİ

Gelişmiş Özellikler • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)

• PoE Auto Recovery Button (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Green Technology

Transfer Metodu Store-And-Forward

DİĞERLERİ

Sertifika FCC, CE, RoHS

Paket İçeriği • LS108GP

• Power Adapter
• Installation Guide
• Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
