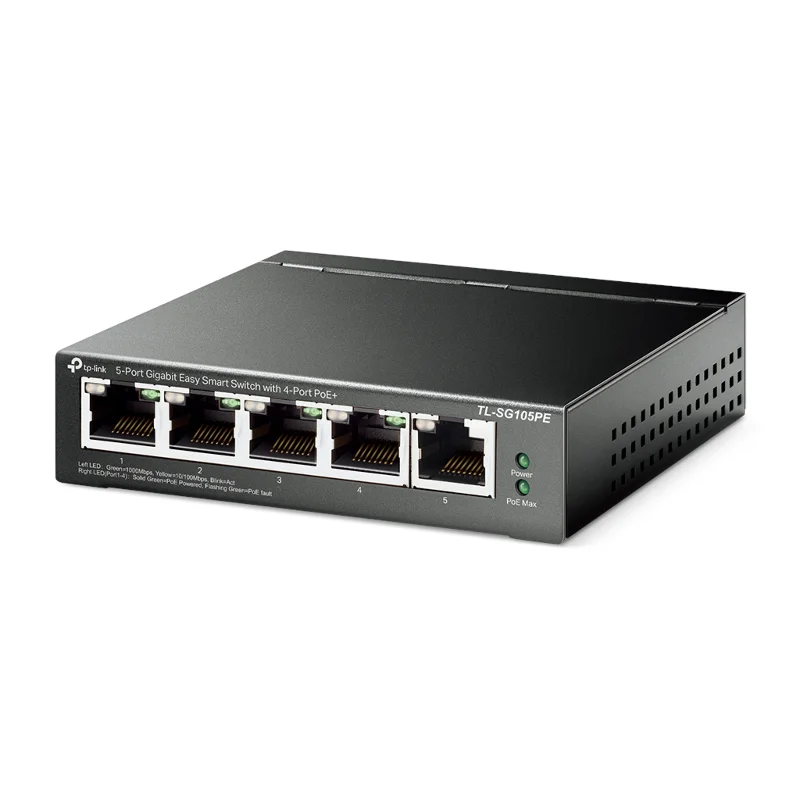

TP-LINK TL-SG105PE, 5 Port, GigaBit, 4 Port Poe, 65W, Easy Smart, Yönetilebilir, Metal Kasa, Masaüstü Switch

• RJ45 Port: 5 Adet
• RJ45 Veri Hızı: 1Gbps
• PoE Port: 4 Adet
• SFP Port: Yok
• Rack Kabin: Uyumlu Değil
• Yönetilebilir: Yönetilebilir
• PoE Gücü Watt: 65W
• Uplink Port: Yok
• Materyal: ​Metal

DONANIM ÖZELLİKLERİ

Standartlar ve Protokoller IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,

IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at

Arabirim Five 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

• Ağ Medyası 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Sayısı Fanless

• Güç Kaynağı External Power Adapter (Output: 53.5 VDC/1.31 A)
• PoE Portları (RJ45) Standard: 802.3 af/at compliant

PoE

• Port: s:
• Port: 1
• Port: 4
• PoE Power Budget: 65 W

Boyutlar ( W X D X H ) 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)

Maks. Güç Tüketimi 4.52 W (220V/50Hz with no PD connected)

75.16 W (220V/50Hz with 65 W PD connected)

Max Heat Dissipation 15.41 BTU/h (with no PD connected)

256.30 BTU/h (with 65 W PD connected)

PERFORMANS

Anahtarlama Kapasitesi 10 Gbps

Paket Yönlendirme Hızı 7.44 Mpps

MAC Adres Tablosu 2 K

Paket Buffer Belleği 1.5 Mb

Jumbo Frame 16 KB

YAZILIM ÖZELLİKLERİ

Quality of Service Support Port-Based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Özellikleri IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

PoE Auto Recovery

Extend Mode

VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Yönetim Web-based GUI

Easy Smart Configuration Utility

İletim Metodu Store-And-Forward

DİĞERLERİ

Sertifika FCC, CE, RoHS

Paket İçeriği TL-SG105PE

Power Adapter

Installation Guide

Rubber Feet

Sistem Gereksinimleri Microsoft® Windows® for running Utility

• Ortam Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90%RH non-condensing
• Storage Humidity: 5%~95%RH non-condensing
